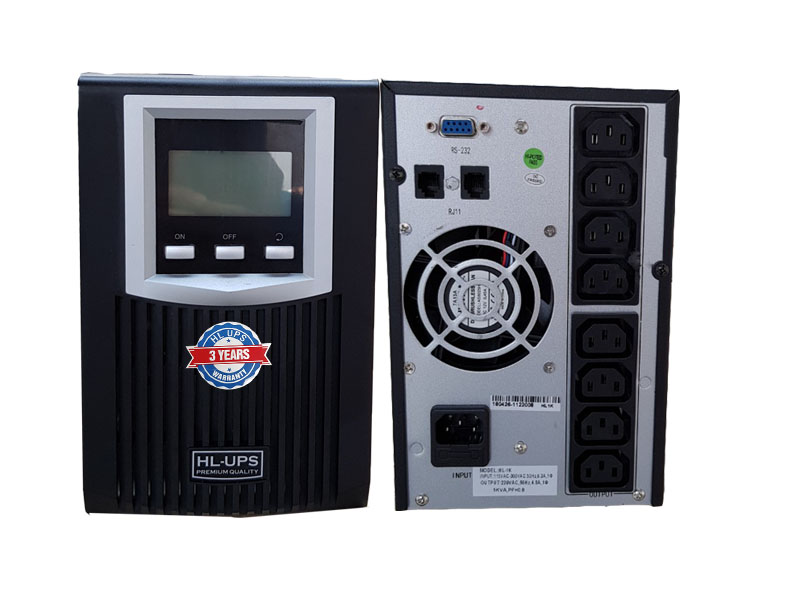

UPS online HL-1K/900w

5.600.000₫

Thông tin sản phẩm

UPS MODEL	HL-1K
PHASE	Single phase with ground
Capacity (VA/Watts)	1000VA/900W
In put
Normal Voltage	100VAC - 300VAC
Frequency Range	40HZ - 70HZ
Power factor	>= 0.99%load (Nominal Input Voltage)
Bypass voltage range	Bypass high voltage point For 200/208/220/230/240 VAC models: 230-264: setting the high voltage point in LCD from 230Vac to 264Vac (Default:264Vac) For 100/110/115/120/127 VAC models: 115-132: setting the high voltage point in parameter 3 from 115Vac to 132Vac (Default:132Vac) Bypass low voltage point For 200/208/220/230/240 VAC models: 170-220: setting the low voltage point in LCD from 170Vac to 220Vac (Default: 170Vac) For 100/110/115/120/127 VAC models: 95-110: setting the low voltage point in parameter 3from 95Vac to 110Vac (Default:95Vac)
ECO range	Same as bypass
Generator input	Support
Out Put
Voltage	200/208/220/230/240VAC (Output can be adjustable)
Frequency	AC mode in sync with AC(45-55)HZ battery mode(50/60HZ)
Power factor	0.9
Voltage regulation	±2%(Batt. Mode)
OutPut waveform	Pure sine wave
Crest factor	3ꓽ1
Harmonic distortion	linear load<= 3% non-linear<= 6%
Transfer time	Zero second transfer
Overload capacity	105%-110%:battery mode 10mins shutdown, AC mode 10mins transfer to bypass mode 110%-130%:battery mode 1mins shutdown, AC mode 1mins transfer to bypass mode >130%:battery mode 3seconds shutdown, AC mode 1second transfer to bypass mode
Efficiency
AC mode	>88%
Battery mode	>83%
Battery
Battery Type	12V9AH
Numbers	2
Backup time	Long run unit depends on the capacity of external batteries
Typical recharge time	4 hours recover to 90% capacity (Typical)
Rated voltage	24VDC
Charging voltage	27.4VDC
Charging Current	1A
Temperature	0 ᵒC- 40ᵒC
Humidity	0 - 90%(Non-condensate)
Noise	<50db
Altitude	<1500m
PHYSICAL
Dimensions	W144H224D285mm
Net weight(Kg)	8.5
Safety standard	IEC/EN62040-1, IEC/EN60950-1
EMC	IEC/EN62040-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
